Electrical System

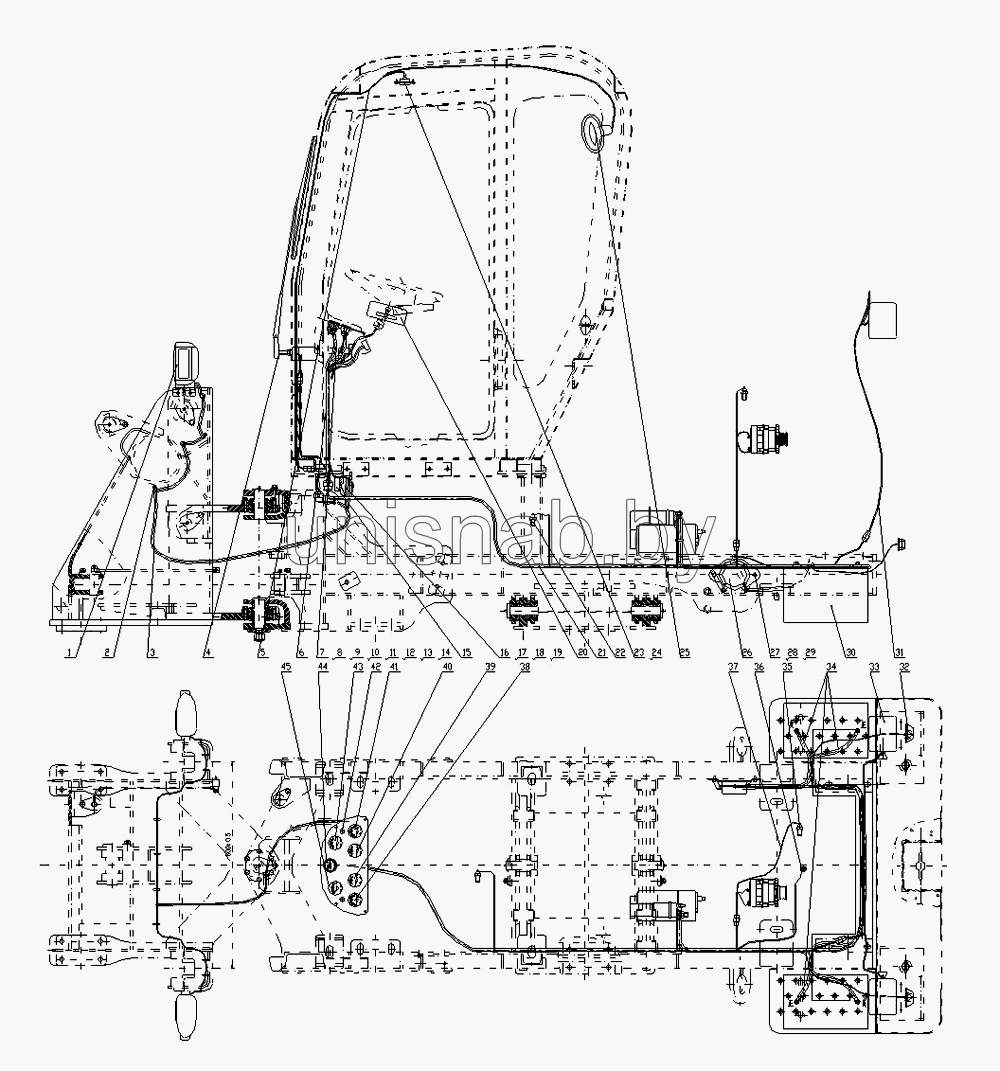

Спецтехника CDM 816 имеют electrical system. Этот узел состоит из различных элементов всего 43 шт. Все товары для CDM 816 просто купить, перейдя на страницу продавца. Ниже, вы можете видеть чертеж в сборе electrical system.
| № | Номер запчасти | Electrical System, все запчасти |
Где купить Electrical System |
|---|---|---|---|
| 1 | LG816.15.10 [Front combined lamp] | Front combined lamp |
Найдено 0 продавцов |
| 2 | LG853.15-001 [Nylon belt ZD250x5] | Nylon belt ZD250x5 |
Найдено 0 продавцов |
| 3 | LG816.15.01 [Front frame wiring] | Front frame wiring |
Найдено 0 продавцов |
| 4 | LG816.15.11 [Wiper assembly] | Wiper assembly |
Найдено 0 продавцов |
| 5 | LG816.15.02 [Cab wiring] | Cab wiring |
Найдено 0 продавцов |
| 6 | LG816.15.06 [Lectern wiring] | Lectern wiring |
Найдено 0 продавцов |
| 7 | LG816.15.07 [Instrument wiring] | Instrument wiring |
Найдено 0 продавцов |
| 8 | LG816.15.34 [Switches] | Switches |
Найдено 0 продавцов |
| 9 | LG853.15.33 [Electrical flasher] | Electrical flasher |
Найдено 0 продавцов |
| 10 | LG853.15.32 [Fuse box] | В Electrical System входит Fuse box |
Найдено 0 продавцов |
| 11 | LG853.15.14 [Electric lock switch] | Electric lock switch |
Найдено 0 продавцов |
| 12 | LG853.15.35 [Oil pressure gauge hose] | Oil pressure gauge hose |
Найдено 0 продавцов |
| 13 | LG853.15.36 [Engine oil pressure gauge hose] | Engine oil pressure gauge hose |
Найдено 0 продавцов |
| 14 | LG853.15.31 [Low pressure alarm] | Low pressure alarm |
Найдено 0 продавцов |
| 15 | LG853.15.30 [Brake light switch] | Brake light switch |
Найдено 0 продавцов |
| 16 | LG816.15.09 [Electrical horn] | Electrical horn |
Найдено 0 продавцов |
| 17 | BG/T 5783 [Bolt M10] | Bolt M10 |
Найдено 0 продавцов |
| 18 | BG/T97.1 [Washer 10] | Washer 10 |
Найдено 0 продавцов |
| 19 | BG/T93 [Washer 10] | Washer 10 |
Найдено 0 продавцов |
| 20 | LG853.15.42 [Combination switch] | В Electrical System входит Combination switch |
Найдено 0 продавцов |
| 21 | LG816.15.03 [Rear frame wiring] | Rear frame wiring |
Найдено 0 продавцов |
| 22 | LG853.15.37 [Oil temperature sensor Z3/8] | Oil temperature sensor Z3/8 |
Найдено 0 продавцов |
| 23 | LG853.15.13 [Ceiling lamp] | Ceiling lamp |
Найдено 0 продавцов |
| 24 | GB/T845 [Plug screw ST4.8x19] | Plug screw ST4.8x19 |
Найдено 0 продавцов |
| 25 | LG816.15.29 [Electrical fan] | Electrical fan |
Найдено 0 продавцов |
| 26 | LG853.15.28 [Power switch] | Power switch |
Найдено 0 продавцов |
| 27 | BG/T 5783 [Bolt M8x20] | Bolt M8x20 |
Найдено 0 продавцов |
| 28 | BG/T93 [Washer 8] | Washer 8 |
Найдено 0 продавцов |
| 29 | GB/T97.1 [Washer 8] | Washer 8 |
Найдено 0 продавцов |
| 30 | LG816.15.26 [Battery] | Battery |
Найдено 0 продавцов |
| 33 | LG816.15.12 [Rear light] | Rear light |
Найдено 0 продавцов |
| 34 | LG816.15.05 [Battery line] | Battery line |
Найдено 0 продавцов |
| 35 | LG853.15.16 [Water temperature sensor Z3/8] | Water temperature sensor Z3/8 |
Найдено 0 продавцов |
| 36 | LG853.15.27 [Low pressure alarm switch] | Low pressure alarm switch |
Найдено 0 продавцов |
| 37 | LG816.15.08 [Engine wiring] | В Electrical System входит Engine wiring |
Найдено 0 продавцов |
| 38 | LG853.15.19 [Water temperature gauge] | Water temperature gauge |
Найдено 0 продавцов |
| 39 | LG853.15.20 [Ammeter] | Ammeter |
Найдено 0 продавцов |
| 40 | LG853.15.25 [Brake air pressure gauge] | Brake air pressure gauge |
Найдено 0 продавцов |
| 41 | LG853.15.22 [Torque converter oil temperature gauge] | Torque converter oil temperature gauge |
Найдено 0 продавцов |
| 42 | LG853.15.23 [Turning light] | Turning light |
Найдено 0 продавцов |
| 43 | LG853.15.24 [Transmission oil pressure gauge] | Transmission oil pressure gauge |
Найдено 0 продавцов |
| 44 | LG853.15.21 [Hour meter] | Hour meter |
Найдено 0 продавцов |
| 45 | LG853.15.18 [Engine oil pressure gauge] | Engine oil pressure gauge |
Найдено 0 продавцов |
